Optical Trackers for Motion Capture, Dynamic Motion Measurement, and Real Time Laser Scanning used in Inspection and Reverse Engineering Central Florida, Orlando, Seminole County

Orlando Optical Trackers for Orlando Motion Capture, Orlando Dynamic Motion Measurement, and Orlando Real Time Laser Scanning used in First Article Inspection in Orlando and Orlando Reverse Engineering

Start Today!

Creaform 3D Scanners

Creaform 3D Scanners

GoScan

3D Scanner GoScan

Introducing the Go!SCAN 3D scanner: it's by far the fastest handheld 3D scanner on the market today, delivering consistent high-quality 3D models. Through its highly intuitive process, it can be used by anyone without prior experience or training.

Its underlying technology accelerates the overall experience: no preparation or specific setup needed, large scanning area, fast measurement, and direct mesh output. It's the quickest path possible to the 3D models you need!



    • Fast 3D Scanning
    • Fast 3D Scanning
    • Portable and Lightweights
    • Portable and Lightweight
    • Easy to Use
    • Easy to Use
  • Fast 3D Scanning
  • Create 3D scans up to 10 times faster than standard 3D scanners! Plainly, the quickest you'll find on the market today.
  • Dynamic referencing
  • You can move the part during the 3D scanning session because there is no rigid setup.
  • Accurate and reliable
  • Accuracy is up to 0.1mm whatever the environment or work conditions, for scan results you can count on.
  • Handheld and lightweight
  • Ergonomic design, weighing only 1.1 kg; bring it and use it anywhere, really! Provides easy access to confined areas, and offers a flexible stand-off distance, with no mechanical constraints.
  • Point and shoot
  • No need to have a rigid setup, or to prepare parts. Just go!
  • Easy and user-friendly
  • Benefit from the very short learning curve. Visualize results in real-time, and use positioning tools to let the system guide you throughout the process. This guarantees quality scans!
  • Flexible and versatile
  • Scan with or without positioning targets depending on the nature of the part geometry. Scan a wide range of parts in different sizes, materials, and colors. Scan away!
START TODAY! Free 3D Evaluation - Click here

MetraSCAN

MetraSCAN MetraSCAN in Action

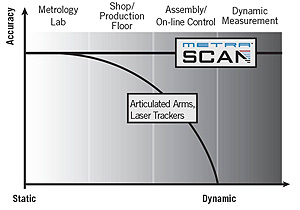

The Most Accurate Measurement Solution. Creaform's TRUaccuracy™ technology ensures highly-accurate measurements, regardless of the measurement environment (instability, vibrations, thermal variation, etc.) or operator skills.

  • With the dynamic referencing mode of the C-Track, the coordinate system can be literally “locked” onto the part(s) being measured, thus maintaining part alignment during the entire scanning process.
  • With the automatic alignment function, manual operation is no longer needed during the alignment phase and root cause errors are drastically reduced.
  • With the fast user calibration process using a certified gauge, the MetraSCAN delivers constant accuracy during its entire life cycle.
  • With the continuous monitoring of parameters (temperature, accuracy, etc.), constant accuracy is ensured during the entire useful life of products.
MetraSCAN MetraSCAN

Complete and Powerful Inspection Solution. Allows geometrical and freeform inspection on the same part with the same system. The automatic alignment capability with optical reflectors allows to scan and probe many identical parts in rapid succession.

Faster and Easier Measurement. Handheld and armless. Easy-to-learn, intuitive system with a very short learning curve. Installation in less than five minutes. Allows the measurement of parts in production without having to align every part.

Greater, Extendable Measurement Volume. Compared with 3D scanners on articulated arms, the MetraSCAN allows a greater basic measurement volume. In addition, this volume can be easily and dynamically extended with no loss of accuracy and without any conventional leapfrog or additional alignment set-up involved. No need for the operator to re-align data after moving the part or the C-Track.

Truly Portable Device. The 100% portability of the MetraSCAN makes it possible to inspect or reverse engineer parts, sub-units or complex assemblies with unequalled precision, mobility and flexibility - no matter where (lab, factory, off-site, etc.).

Excellent ROI. Yields considerable productivity and operating profits in industrial coordinate measurement and control.

START TODAY! Free 3D Evaluation - Click here

HandyProbe Portable CMM

The portable CMM arm-free probing system HandyPROBE™ and the C-Track™ dual-camera sensor form a unique duo that generates high accuracy measures and increases the reliability and speed of the measurement process.

C-Track 3D Scanning Sensor

Compared to other existing coordinate measurement technologies, the HandyPROBE portable wireless CMM gives you total freedom of movement, allowing for significant increase in productivity and quality of work.

The C-Track dual-camera sensor is fitted with high quality optics and special lighting, enabling it to measure all reflectors within its operating space. In addition to tracking the whole system's reference model, the C-Track ensures the exact localization of the HandyPROBE, performs continuous image acquisition and transmission, lighting of reflectors, wireless communication with the HandyPROBE stylus, management of the exchanges with the computer and storage of the sensor parameters.

Inspection

  • Part-to-CAD analysis
  • First article and supplier quality inspection
  • Conformity assessment of 3D models against the original parts/production tooling
  • Conformity assessment of manufactured parts against the originals
  • Alignment
  • Tooling certification
  • Multi-shot measurement (up to 30 points/sec.)
  • Reverse engineering of geometric entities (spheres, cylinders, planes)
  • When used in conjunction with a Handyscan 3D laser scanner, allows for faster and more accurate reverse engineering of mixed parts (geometrical and free-form) Various industries use the HandyPROBE™ arm-free portable probing system:
  • Aerospace
  • Automotive/Transport equipment production
  • Consumer products
  • Education
  • Metallurgy and metal processing
  • Machine tool production
  • Forming, molding, manufacturing, casting and assembling

Creaform 3D Scanners

START TODAY! Free 3D Evaluation - Click here

HandyScan 3D Scanners

UniScan

Introducing the entry-level model of the Handyscan 3D™ line-up: the UNIscan™. Featuring the Handyscan 3D quality and reliability, this low-cost handheld laserUNIscan 3D Scanner scanner reaches a wider community of users, thus opening the door to a whole new base of 3D scanning applications.

The UNIscan is the best way to conduct serious, cost-efficient laser scanning business. Boasting the same innovative self-positioning handheld technology that has completely revolutionized the 3D scanning ways of doing, the UNIscan is the most affordable, easy to use, all-purpose scanner of the Handyscan 3D line-up. Limited-budget and/or small companies in need of a high quality, performing and reliable 3D digitizing device can now own the technology offering the best quality/price ratio on the market.

RevScan

Here is the REVscan™, the innovative self-positioning handheld scanner that has completely changed the way reverse engineering, design, shape acquisition and 3D inspection are done. Powerful, accurate and truly portable, the REVscan definitively maintains its technological edge.

REVscan 3D Scanner

The REVscan laser scanner allows companies to meet their requirements for creating or recreating new designs from existing and sometimes obsolete products or components, or even old parts that may have been developed without the use of CAD. The REVscan has proven particularly efficient at accelerating and facilitating the product design, creation and prototype analysis processes, while reducing related costs. The REVscan turns out to be very powerful for tasks such as:

  • Surface reconstruction
  • Class A surfacing
  • 3D modeling
  • Mechanical design
  • Clay model digitizing
  • Tooling & jigs development
  • Maintenance, repair and overhaul (MRO)
  • Finite Element Analysis (FEA)

Inspection: Scanning and measuring of objects of any size, in various environments. Non contact, first-article and supplier quality inspection, colorimetric reports and overall conformity assessment of parts.

Medical Applications: Non contact, non invasive process. Generation of 3D digital files from body parts or existing objects, orthotics and prosthetics, aesthetics and plastic surgery, body part measurements and reproduction, diagnosis and follow-ups.

Other applications include 3D scanning of existing objects, 3D archiving, complex shape acquisition, measurements archiving, damage assessment, digital models and mock-ups, packaging design and rapid prototyping.

ExaScan

Introducing the EXAscan™, the high resolution scanner from the Handyscan 3D™ line of truly portable, self-positioning handheld laser scanners by Creaform. Based on the same breakthrough technology that has made the Handyscan 3D brand so successful, the EXAscan EXAscan 3D Scannerself-positioning handheld scanner offers increased resolution and accuracy. The EXAscan makes it possible to carry out EXActing 3D scanning projects with a level of detail and accuracy that no other handheld scanning system can achieve. The EXAscan is definitely the most flexible, freeform inspection device on the market.

The EXAscan laser scanner is the perfect inspection tool for analyzing and reporting geometric dimensioning and tolerancing (GD&T). The direct .stl files generated can easily be imported into inspection software and quickly processed. The EXAscan can help you with scanning and measuring of objects of any sizes in various environments, generating inspection and colorimetric reports and:

  • Non contact inspection
  • First article inspection
  • Supplier quality inspection
  • Part-to-CAD inspection
  • Conformity assessment of 3D models against the original parts / production tooling
  • Conformity assessment of manufactured parts against the originals

Reverse Engineering & Styling, design & Analysis: Facilitates surface reconstruction, class A surfacing, 3D modeling, clay model digitizing, mechanical design, tooling & jigs design, maintenance, repair & overhaul (MRO) and finite element analysis (FEA). Other applications include 3D scanning of existing objects, 3D archiving, medical applications, complex shape acquisition, measurements archiving, damage assessment, digital models and mock-ups, packaging design and rapid prototyping.

MaxScan

Up to this day and with conventional scanning technology, 3D scanning of large or very large parts,MAXscan 3D Scanner such as full-size cars and entire aircrafts, has always been a great challenge. This time is now over. Here is the MAXscan™, the newest portable and handheld laser scanner featuring the Handyscan 3D™ technology, combined with photogrammetry-level accuracy.

Extensive length. Large surface. Bulkiness. These are no longer issues, thanks to the MAXscan. This new laser scanner has been designed for a sole purpose : to bring large parts data acquisition to the MAXimum level of accuracy ever reached with a 2-in-1 device. When dealing with large parts, the MAXscan laser scanner is the most powerful ally in reverse engineering and inspection.

START TODAY! Free 3D Evaluation - Click here

3D Scanner Applications

Reverse Engineering:

  • Surface reconstruction
  • 3D modeling
  • Tooling & jigs development
  • Maintenance, repair and overhaul (MRO)
  • Finite Element Analysis (FEA)

Inspection:

  • Non contact inspection
  • First article inspection
  • Supplier quality inspection
  • Part-to-CAD inspection
  • Conformity assessment of 3D models against the original parts / production tooling
  • Conformity assessment of manufactured parts against the originals.

Other applications include 3D archiving, complex shape acquisition, measurements archiving, damage assessment, digital models and mock-ups, packaging design and rapid prototyping.
